Semi Automatic Waste Tyre Recycling Production Line

Product Details

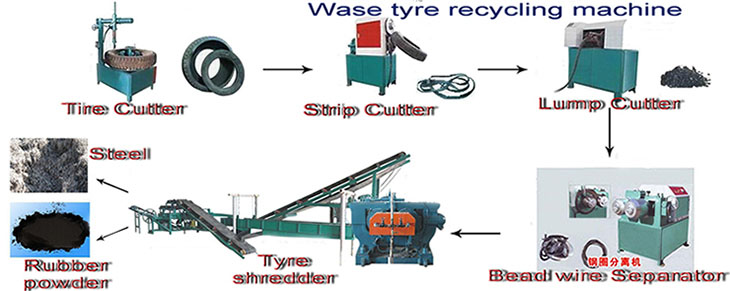

Tire Cutter / Tire Cutter Machine/ Tire Cutting Machine
It is used to cut off the bead and steel wall with steel wires from waste tires.
Motor power: 5.5kw
Overall size: 1100*900*1700mm (L*W*H)
Output: tire bead and sidewall, tread.
Capacity: 45-60 tires/h, be equal to 1500-2250kg/h.

Strip Cutter / Tire Sidewall Cutting Machine
Motor power: 5.5kws
Overall size: 1290*870*1550 (L*W*H)
Input: the tire tread and side wall
Output: 3-5cm width rubber strip
Capacity: 15-20pcs tires per hours, be equal to 500-750kg tires per hour.

Lump Cutter / Blocks Cutter / Tire Chopped Machine
Motor power: 18.5kw
Overall size: 1130*830*1100mm (L*W*H)
Input: the rubber strips from the strip cutter
Output: 30mmx30mm rubber blocks
Capacity: 30-40pcs waste tires per hours, be equal to 1000-1500kg waste tire per hour.

Bead Wire Separator
Motor power: 15kw
Overall size: 1520*1150*1210mm (L*W*H)
Input: bead rings from the bead cutter
Output: steel wires and tire rim scraps
Capacity: 30-40pcs waste tires per hours, be equal to 1000-1500kg tire per hours.

Tire Cracker Mill
The machine is used to crush waste rubber and break raw rubber materials.



Main parameter:

Model WHP560
Working dia of front roll(mm) 560
Working dia of rear roll(mm) 560
Working length of roll(mm) 800
Linear speed of front roll(m/min) 25.56
Friction ratio of rolls(front/rear) 1:1.30
Max. gap(mm) 15
Capacity(kg/h) 500
Main motor power(kw) 90
Overall dimension(mm) 5100×2300 ×2000
