Usage:

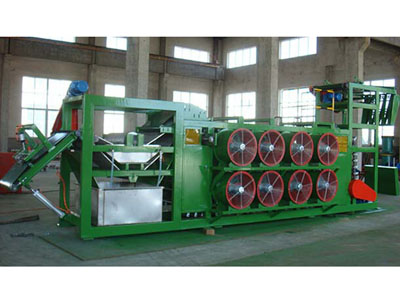

This is the downstream auxiliary to the internal mixer or the dispersion mixer. It works with the double conical-screw extruder sheeter and is designed to perform continuous operations of rubber slab conveying, coating separate, air cooling, drying, cutting and wig-wag stacking.

Main parameter:

Model/Item			XPG-600	XPG-800	XPG-900
Max. rubber sheet width		mm	600	800	900
The thickness of the rubber sheet		mm	4-10	4-10	6-12
Rubber sheeting temperature over room temperature after cooling		°C	10	15	5
Linear speed of taking-in conveyer		m/min	3-24	3-35	4-40
Linear speed of sheet hanging bar		m/min	1-1.3	1-1.3	1-1.3
Hanging height of the sheet hanging bar		m	1000-1500	1000-1500	1400
Number of cooling fans		Set	12	20-32	32-34
Total power		kW	16	25-34	34-50
Dimensions	L	mm	14250	16800	26630-35000
	W	mm	3300	3400	3500
	H	mm	3405	3520	5630
Weight		t	~11	~22	~34
