Usage:

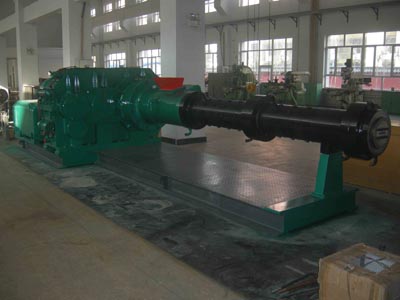

Pin-barrel cold feed rubber extruders are mainly used for the extrusion of semi-finished articles during rubber processing. It's equipped with different heads(and die) the extruder could be used for the production of tube, strip, cable/wire, rubber-coating, various semi-finished part of tires etc.

Main parameter:

Sizes	Screw diameter (mm)	L/D	Rated power(KW)	Max. speed of screw (rpm)	Max. output(kg/h)
XJD-60(65)	Φ60(65)	12~16	22	80	150
XJD-90	Φ90	12~16	55~75	60	350
XJD-120	Φ120	12~16	75~110	50	850
XJD-150	Φ150	12~16	160~255	45	1500
XJD-200	Φ200	12~18	220~355	28	2600
XJD-250	Φ250	12~18	355~500	26	4200
