Features :

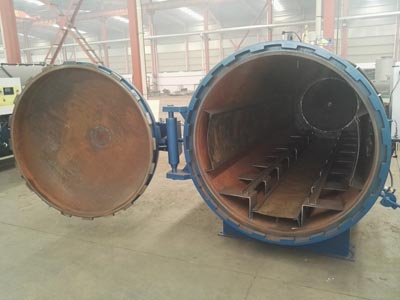

The autoclave for tire retreading is a pressure vessel with speed open door, the autoclave openings sealed with inflatable silicone ring or internal pressure self-tight rubber pad. Mechanical or manual gearing is used to lock and open the lid, reasonable structure, convenient operation, good sealing performance, the temperature in the tank is uniform, furthermore, complete safety accessories (equipped with safety interlock device).
Main parameter:
Item | 800 | 1200 | 1500 | 1700 | 2000 | 2600 |
Inner diameter(mm) | 800 | 1200 | 1500 | 1700 | 2000 | 2600 |
Canister length(mm) | 22000 | 3000 | 3000 | 4000 | 5000 | 10000 |
Number of lid sawtooth | 12 | 12 | 14 | 14 | 16 | 24 |
thickness of lid (mm) | 10 | 10 | 10 | 10 | 16 | 14 |
Thickness of the tank body (mm) | 10 | 10 | 10 | 10 | 12 | 14 |
Working pressure (Mpa) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.55 |
Dimensions (mm) (L*W*H) | 22766*1445*1170 | 4010*1575*1670 | 3960*2150*2050 | 4925*2162*2070 | 6200*2590*2424 | 11722*3360*4136 |
Weight(Kg) | 5580 | 2017 | 2950 | 3835 | 6500 | 16775 |
