Usage :

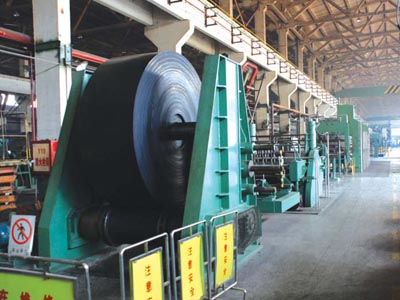

The machine applies to vulcanizing various kinds of rubber belts and conveyor belts, steel wire cord conveyor belt or textile core conveyor belt, full automatically.
Main parameter:
Model | XLB-DQ1200×1200×2 | XLB-Q1200×2500×1 | XLB-Q1400×5700×1 |
Nominal clamp mould force(MN) | 3.15 | 7.50 | 28.00 |
Specification of hot plate (mm) | 1200×1200 | 1200×2500 | 1400×5700 |
Distance between hot plate (mm) | 200 | 400 | 400 |
Number of working layer | 2 | 1 | 1 |
Piston trip (mm) | 400 | 400 | 400 |
Unit Area pressure of hot plate (Mpa) | 22 | 25 | 35 |
Main motor power (kw) | 3 | 9.5 | 43.5 |
Overall dimension(L×W×H) (mm) | 1685×1320×2450 | 2560×1700×2780 | 2400×5800×3600 |
Weight (kg) | 9500 | 20000 | 110000 |
