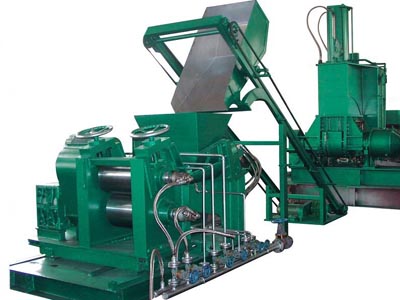

Double Conical-Screw Extruder and Sheeters

Product Details

Designed to forcibly extruder and sheet compounded rubber, plastic, synthetic resin or non-metallic material in continuous production. It has high efficiency and is ideal for working with mixers or dispersion mixers.

The machine is comprised of the two main parts. The double conical-screw and the two roll sheeter. The design is compact and rational, and makes the maintenance convenient.
The stepless speed regulation with the AC frequency control technology or the DC speed regulation technology is used for the feeder .and the sheeter so that it can meet the technological requirement of the rubber or resin sheeting line.
It has the welded feeding barrel of jacket type and the bored sheeting roll where cooling water or hot oil/hot water/steam/can be lead through to control the temperature and meet the technological requirements for different kinds of stock.
The sheeter, which is installed on the rack and the slide rail on the base plate, can be moved horizontally through operation of manual or pneumatic mechanism so that it can be separated and clutched, which facilitates replacing or cleaning the feed head.
The working surfaces of all parts in contact with stock are plated with hard chrome to resist abration and corrosion.
The double conial screws for feeding are of the tapered convergent type with variable pitch, which raises the extruding capacity, Meanwhile, the flat die head improves the extrusion density and plateness.
The electrical control system incorporating the PLC technology can provide not only individual control of single machines but also gang control of the sheeting line.

Main parameter:

Model Item 35 ‘ 55 75 ‘ 110 M50 ‘ M80 150 ‘ 200 M120 300  M160
1 Output capacity:(max) 385L/h 700L/h 1400L/h 5000L/h
2 The motor power of Bi-pyramid (Kw) 15 22 110 132
3 The speed of Bi-pyramid (r/min) 1.3~13 1.3~13 1.2~12 1.2~12
4 Capacity of hopper(L) 110 150 350 400
5 The power of roller head (Kw) 7.5 15 30 55
6 Diameter of roller(mm) 330 345 600 700
7 Width of roller(mm) 450 600 650 900
8 The nip of roller(mm) 3~8 3~8 4~10 4~10
9 The speed of roller (r/min) 1.1~11 1.3~13 1.5~15 1.8~18
10 Width of slab (max)(mm) 250 350 450 800
11 The angle of equipment installation 15°
12 The angle of bi-pyramid 15°
13 The central high of roller 860 1058 800 800
14 Installation type (machine body can removable) 200(up-roller can move upward
