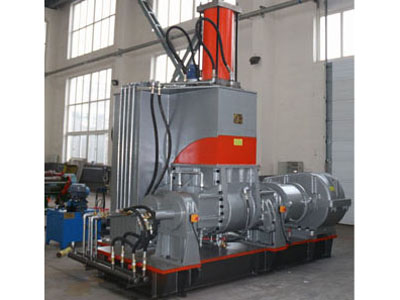

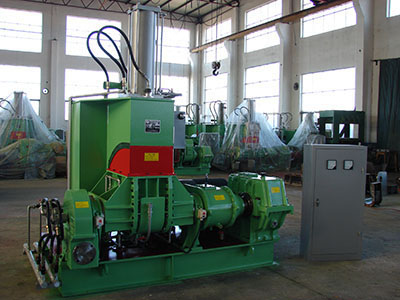

Rubber Dispersion Mixer

Product Details

Rubber Dispersion Mixer, Plastic Dispersion Mixer, Rubber Kneader

Propose usable for rubber or plastic plasticizing and mixing or rubber and plastic blending.

Features :
1. Rubber or plastic stock can be plasticized or mixed in a closed and pressurized space with the temperature controlled so that the productivity is high and the quality is good and stable.
2. Optimization of the parameters such as the helical angle of rotor wings and the wing overlap length brings about homogeneous distribution of the stock.
3. All the parts in contact with stock are plated with hard chrome and polished. The rotor wings are built up by welding with the carbide alloy to resist abrasion and corrosion.
4. All the parts in contact with stock are of the jacket design where water/steam/medium oil is lead through to provide cooling or heating and can meet different requirements for the rubber or plastic mixing process.
5. Stock is fed through the rear door of the frame work (or other port) and discharged by titling the mixing chamber forwarder by 1400 , such a design makes it possible to arrange the upstream and the downstream process steps in a line and facilitates stock color changing and mixing chamber cleaning .
6. Programmable logic controllers (PLC) are used for the electrical control system. It provides the perfect and reliable control ,detection & alarm and the necessary safety interlocking functions and has the serial interfaces for connection to the net work.

Main parameter:

Type X(S)N-10X32 X(S)N-20X34 X(S)N-35X30 X(S)N-55X30 X(S)N-75X30 X(S)N-110X30
Pinching total cubage L 25 45 75 125 175 250
Dense smelting total cubage L 10 20 35 55 75 110
Main motor power KW 22 22 55 75 110 185
Overturn motor power KW 1.1 1.5 2.2 2.2 3.0 7.5
Overturn angle 0 140 140 140 140 140 140
Rotate speed of rotor oxis(front/back) r/min 32/25 34/28 30/24.5 30/24.5 30/24.5 30/24.5
Pressure of compressed air Mpa 0.5~0.8 0.6~0.8 0.6~0.8 0.6~0.8 0.6~0.8 0.6~0.8
Pressure of cooling water Mpa 0.2~0.4 .0.2~0.4 .0.2~0.4 0.2~0.4 0.2~0.4 0.2~0.4
Pressure of heating vapor Mpa 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8
Overall size (L* W * H) mm 2640x1650
Weight kg 3300 4500 6500 7800 10230 14970
