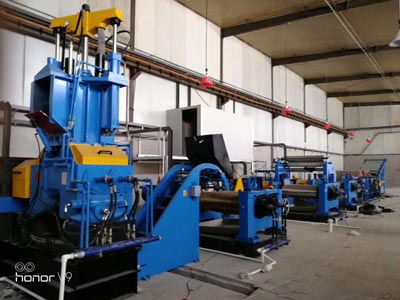

The mixing chamber is forged and welded of the jacket type providing good cooling or heating effect. The working face of mixing chamber is built up by welding with carbide alloy to resist abrasion and corrosion.
The rotor shaft is bored and welded with the Banbury rotor, forming the integrated construction. Water or steam can be led through the cavity to cool or heat it. The rotor wings are build up by welding with carbide alloy on the top and the two side surfaces to resist abrasion and corrosion.
The hydraulic sealing that is pressurized externally is used for the end faces of rotor. The pressure is adjustable and the sealing effect is good.
Operation of the discharge door is driven by the double-rack titling cylinder with the crank locking mechanism so that installation is easy. The start pressure low, the mechanical efficiency high and the operation safe and reliable. The discharge door is of the drilled-hole cooled type and the working surface is build up by welding with carbide alloy .
The advanced PLC control technology and the intelligent display terminal are used for the control system. It provides the functions of intelligent operations and information indication in Chinese characters, such as setting the control parameters to the user’s requirement, giving appropriate prompts about the operation stamps, dynamically displaying the mixing process parameters and detecting faults and giving alarms, which improves the reliability of the control system.
|Model||X(S)M-50 X 40||X(S)M-80 X40||X(S)M-120X 40||X(S)M-160X40|
|Total Volume of mixing chamber||L||50||80||120||160|
|Working capacity of mixing chamber||L||30||60||90||120|
|Rotating speed of rear rotor||r/min||40||40||40||40|
|Sped ratio of rotor||1:1.172||1:1.143||1:1.15||1:1.16|
|Pressure of compressed air||MPa||0.6 ~ 0.8||0.6 ~ 0.8||0.6 ~ 0.8||0.6 ~ 0.8|
|Compressed air consume||m3/h||20||30||60||80|
|Pressure of cooling water||MPa||0.3 ~ 0.4||0.3 ~ 0.4||0.3 ~ 0.4||0.3 ~ 0.4|
|Cooling water consume||m3/h||7 ~ 10||25||27 ~ 45||35 ~ 50|
|Steam pressure||MPa||£0.8||0.5 ~ 0.8||0.5 ~ 0.8||0.5 ~ 0.8|
|Power of driven motor||kw||95||210||280||450 DC|
|Overall dimension (L*W*H)||mm||5600X2700 X3300||5930X2620 X3900||7400X3100 X4230||6620X2640X4300|
